AutoGluon Time Series - Forecasting Quick Start

Via a simple fit() call, AutoGluon can train and tune

• simple forecasting models (e.g., ARIMA, ETS, Theta),

• powerful deep learning models (e.g., DeepAR, Temporal Fusion Transformer),

• tree-based models (e.g., LightGBM),

• an ensemble that combines predictions of other models

to produce multi-step ahead probabilistic forecasts for univariate time series data.

This tutorial demonstrates how to quickly start using AutoGluon to generate hourly forecasts for the M4 forecasting competition dataset.

Loading time series data as a TimeSeriesDataFrame

First, we import some required modules

import pandas as pd
from autogluon.timeseries import TimeSeriesDataFrame, TimeSeriesPredictor

To use autogluon.timeseries, we will only need the following two classes:

• TimeSeriesDataFrame stores a dataset consisting of multiple time series.

• TimeSeriesPredictor takes care of fitting, tuning and selecting the best forecasting models, as well as generating new forecasts.

We load a subset of the M4 hourly dataset as a pandas.DataFrame

df = pd.read_csv("https://autogluon.s3.amazonaws.com/datasets/timeseries/m4_hourly_subset/train.csv")
df.head()

	item_id	timestamp	target
0	H1	1750-01-01 00:00:00	605.0
1	H1	1750-01-01 01:00:00	586.0
2	H1	1750-01-01 02:00:00	586.0
3	H1	1750-01-01 03:00:00	559.0
4	H1	1750-01-01 04:00:00	511.0

AutoGluon expects time series data in long format. Each row of the data frame contains a single observation (timestep) of a single time series represented by

• unique ID of the time series ("item_id") as int or str

• timestamp of the observation ("timestamp") as a pandas.Timestamp or compatible format

• numeric value of the time series ("target")

The raw dataset should always follow this format with at least three columns for unique ID, timestamp, and target value, but the names of these columns can be arbitrary. It is important, however, that we provide the names of the columns when constructing a TimeSeriesDataFrame that is used by AutoGluon. AutoGluon will raise an exception if the data doesn’t match the expected format.

train_data = TimeSeriesDataFrame.from_data_frame(
    df,
    id_column="item_id",
    timestamp_column="timestamp"
)
train_data.head()

		target
item_id	timestamp
H1	1750-01-01 00:00:00	605.0
	1750-01-01 01:00:00	586.0
	1750-01-01 02:00:00	586.0
	1750-01-01 03:00:00	559.0
	1750-01-01 04:00:00	511.0

We refer to each individual time series stored in a TimeSeriesDataFrame as an item. For example, items might correspond to different products in demand forecasting, or to different stocks in financial datasets. This setting is also referred to as a panel of time series. Note that this is not the same as multivariate forecasting — AutoGluon generates forecasts for each time series individually, without modeling interactions between different items (time series).

TimeSeriesDataFrame inherits from pandas.DataFrame, so all attributes and methods of pandas.DataFrame are available in a TimeSeriesDataFrame. It also provides other utility functions, such as loaders for different data formats (see TimeSeriesDataFrame for details).

Training time series models with TimeSeriesPredictor.fit

To forecast future values of the time series, we need to create a TimeSeriesPredictor object.

Models in autogluon.timeseries forecast time series multiple steps into the future. We choose the number of these steps — the prediction length (also known as the forecast horizon) — depending on our task. For example, our dataset contains time series measured at hourly frequency, so we set prediction_length = 48 to train models that forecast up to 48 hours into the future.

We instruct AutoGluon to save trained models in the folder ./autogluon-m4-hourly. We also specify that AutoGluon should rank models according to mean absolute scaled error (MASE), and that data that we want to forecast is stored in the column "target" of the TimeSeriesDataFrame.

predictor = TimeSeriesPredictor(
    prediction_length=48,
    path="autogluon-m4-hourly",
    target="target",
    eval_metric="MASE",
)

predictor.fit(
    train_data,
    presets="medium_quality",
    time_limit=600,
)

================ TimeSeriesPredictor ================
TimeSeriesPredictor.fit() called
Setting presets to: medium_quality
Fitting with arguments:
{'enable_ensemble': True,
 'eval_metric': MASE,
 'excluded_model_types': None,
 'freq': None,
 'hyperparameter_tune_kwargs': None,
 'hyperparameters': 'medium_quality',
 'num_val_windows': 1,
 'prediction_length': 48,
 'quantile_levels': [0.1, 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9],
 'random_seed': None,
 'refit_full': False,
 'target': 'target',
 'time_limit': 600,
 'verbosity': 2}

Inferred time series frequency: H
Provided train_data has 148060 rows, 200 time series. Median time series length is 700 (min=700, max=960).
=====================================================

AutoGluon will save models to autogluon-m4-hourly
AutoGluon will gauge predictive performance using evaluation metric: 'MASE'
	This metric's sign has been flipped to adhere to being 'higher is better'. The reported score can be multiplied by -1 to get the metric value.

Provided dataset contains following columns:
	target:           'target'

Starting training. Start time is 2023-11-13 23:21:36
Models that will be trained: ['Naive', 'SeasonalNaive', 'Theta', 'AutoETS', 'RecursiveTabular', 'DeepAR']
Training timeseries model Naive. Training for up to 599.76s of the 599.76s of remaining time.
	-6.6629       = Validation score (-MASE)
	0.10    s     = Training runtime
	2.01    s     = Validation (prediction) runtime
Training timeseries model SeasonalNaive. Training for up to 597.64s of the 597.64s of remaining time.
	-1.2169       = Validation score (-MASE)
	0.09    s     = Training runtime
	0.18    s     = Validation (prediction) runtime
Training timeseries model Theta. Training for up to 597.36s of the 597.36s of remaining time.
	-2.1425       = Validation score (-MASE)
	0.09    s     = Training runtime
	28.96   s     = Validation (prediction) runtime
Training timeseries model AutoETS. Training for up to 568.30s of the 568.30s of remaining time.
	-1.9399       = Validation score (-MASE)
	0.09    s     = Training runtime
	101.93  s     = Validation (prediction) runtime
Training timeseries model RecursiveTabular. Training for up to 466.28s of the 466.28s of remaining time.
	-0.9339       = Validation score (-MASE)
	12.94   s     = Training runtime
	2.49    s     = Validation (prediction) runtime
Training timeseries model DeepAR. Training for up to 450.83s of the 450.83s of remaining time.
	-2.1256       = Validation score (-MASE)
	115.98  s     = Training runtime
	1.59    s     = Validation (prediction) runtime
Fitting simple weighted ensemble.
	-0.9219       = Validation score (-MASE)
	3.08    s     = Training runtime
	106.20  s     = Validation (prediction) runtime
Training complete. Models trained: ['Naive', 'SeasonalNaive', 'Theta', 'AutoETS', 'RecursiveTabular', 'DeepAR', 'WeightedEnsemble']
Total runtime: 269.85 s
Best model: WeightedEnsemble
Best model score: -0.9219

<autogluon.timeseries.predictor.TimeSeriesPredictor at 0x7ff2387fa980>

Here we used the "medium_quality" presets and limited the training time to 10 minutes (600 seconds). The presets define which models AutoGluon will try to fit. For medium_quality presets, these are simple baselines (Naive, SeasonalNaive), statistical models (AutoETS, Theta), tree-based model LightGBM wrapped by RecursiveTabular, a deep learning model DeepAR, and a weighted ensemble combining these. Other available presets for TimeSeriesPredictor are "fast_training", "high_quality" and "best_quality". Higher quality presets will usually produce more accurate forecasts but take longer to train.

Inside fit(), AutoGluon will train as many models as possible within the given time limit. Trained models are then ranked based on their performance on an internal validation set. By default, this validation set is constructed by holding out the last prediction_length timesteps of each time series in train_data.

Generating forecasts with TimeSeriesPredictor.predict

We can now use the fitted TimeSeriesPredictor to forecast the future time series values. By default, AutoGluon will make forecasts using the model that had the best score on the internal validation set. The forecast always includes predictions for the next prediction_length timesteps, starting from the end of each time series in train_data.

predictions = predictor.predict(train_data)
predictions.head()

Model not specified in predict, will default to the model with the best validation score: WeightedEnsemble

		mean	0.1	0.2	0.3	0.4	0.5	0.6	0.7	0.8	0.9
item_id	timestamp
H1	1750-01-30 04:00:00	628.836609	593.212451	605.448847	614.264769	621.796289	628.836609	635.874486	643.403689	652.219754	664.440866
	1750-01-30 05:00:00	558.047528	510.947140	527.145465	538.793086	548.748216	558.047528	567.348767	577.299667	588.942853	605.109211
	1750-01-30 06:00:00	515.737845	459.872884	479.065038	492.893158	504.696013	515.737845	526.776262	538.582063	552.401524	571.580623
	1750-01-30 07:00:00	484.273998	421.008442	442.746605	458.405166	471.777663	484.273998	496.778081	510.155699	525.818215	547.547282
	1750-01-30 08:00:00	460.772021	390.966360	414.920300	432.200467	446.964709	460.772021	474.579081	489.330843	506.594467	530.579929

AutoGluon produces a probabilistic forecast: in addition to predicting the mean (expected value) of the time series in the future, models also provide the quantiles of the forecast distribution. The quantile forecasts give us an idea about the range of possible outcomes. For example, if the "0.1" quantile is equal to 500.0, it means that the model predicts a 10% chance that the target value will be below 500.0.

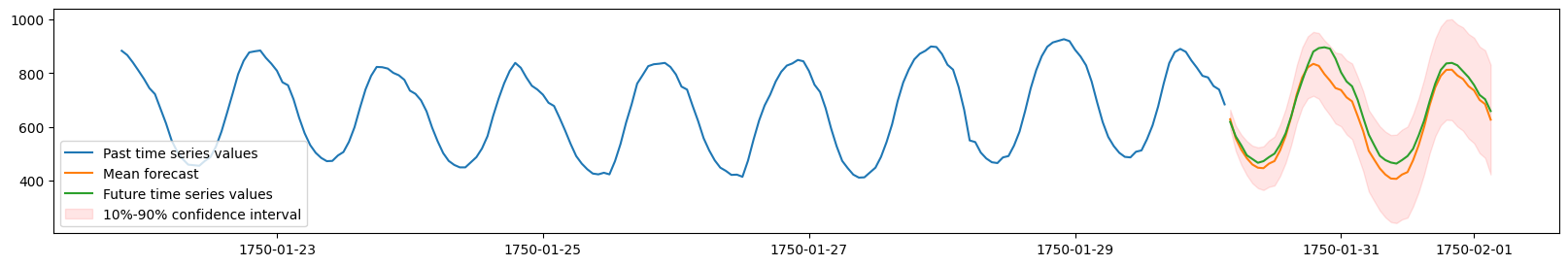

We will now visualize the forecast and the actually observed values for one of the time series in the dataset. We plot the mean forecast, as well as the 10% and 90% quantiles to show the range of potential outcomes.

import matplotlib.pyplot as plt

# TimeSeriesDataFrame can also be loaded directly from a file
test_data = TimeSeriesDataFrame.from_path("https://autogluon.s3.amazonaws.com/datasets/timeseries/m4_hourly_subset/test.csv")

plt.figure(figsize=(20, 3))

item_id = "H1"
y_past = train_data.loc[item_id]["target"]
y_pred = predictions.loc[item_id]
y_test = test_data.loc[item_id]["target"][-48:]

plt.plot(y_past[-200:], label="Past time series values")
plt.plot(y_pred["mean"], label="Mean forecast")
plt.plot(y_test, label="Future time series values")

plt.fill_between(
    y_pred.index, y_pred["0.1"], y_pred["0.9"], color="red", alpha=0.1, label=f"10%-90% confidence interval"
)
plt.legend();

Evaluating the performance of different models

We can view the performance of each model AutoGluon has trained via the leaderboard() method. We provide the test data set to the leaderboard function to see how well our fitted models are doing on the unseen test data. The leaderboard also includes the validation scores computed on the internal validation dataset.

In AutoGluon leaderboards, higher scores always correspond to better predictive performance. Therefore our MASE scores are multiplied by -1, such that higher “negative MASE”s correspond to more accurate forecasts.

# The test score is computed using the last
# prediction_length=48 timesteps of each time series in test_data
predictor.leaderboard(test_data, silent=True)

Additional data provided, testing on additional data. Resulting leaderboard will be sorted according to test score (`score_test`).

	model	score_test	score_val	pred_time_test	pred_time_val	fit_time_marginal	fit_order
0	WeightedEnsemble	-0.841637	-0.921876	127.345857	106.196388	3.078198	7
1	RecursiveTabular	-0.862797	-0.933874	1.816614	2.488869	12.941169	5
2	SeasonalNaive	-1.022854	-1.216909	0.469350	0.179475	0.093067	2
3	AutoETS	-1.778531	-1.939939	123.130959	101.934478	0.088457	4
4	Theta	-1.905365	-2.142531	17.670010	28.961594	0.093536	3
5	DeepAR	-2.616110	-2.125581	1.918893	1.593566	115.984398	6
6	Naive	-6.696079	-6.662942	0.348782	2.007305	0.098725	1

Summary

We used autogluon.timeseries to make probabilistic multi-step forecasts on the M4 Hourly dataset. Check out Forecasting Time Series - In Depth to learn about the advanced capabilities of AutoGluon for time series forecasting.
