AutoMM Detection - Quick Start on a Tiny COCO Format Dataset¶
In this section, our goal is to fast finetune a pretrained model on a small dataset in COCO format, and evaluate on its test set. Both training and test sets are in COCO format. See Convert Data to COCO Format for how to convert other datasets to COCO format.
Setting up the imports¶
To start, let’s import MultiModalPredictor:
from autogluon.multimodal import MultiModalPredictor
Make sure mmcv-full and mmdet are installed:
!mim install mmcv-full
!pip install mmdet
Looking in links: https://download.openmmlab.com/mmcv/dist/cu117/torch1.13.0/index.html
Requirement already satisfied: mmcv-full in /home/ci/opt/venv/lib/python3.8/site-packages (1.7.1)
Requirement already satisfied: yapf in /home/ci/opt/venv/lib/python3.8/site-packages (from mmcv-full) (0.32.0)
Requirement already satisfied: packaging in /home/ci/opt/venv/lib/python3.8/site-packages (from mmcv-full) (23.0)
Requirement already satisfied: opencv-python>=3 in /home/ci/opt/venv/lib/python3.8/site-packages (from mmcv-full) (4.7.0.68)
Requirement already satisfied: pyyaml in /home/ci/opt/venv/lib/python3.8/site-packages (from mmcv-full) (5.4.1)
Requirement already satisfied: numpy in /home/ci/opt/venv/lib/python3.8/site-packages (from mmcv-full) (1.23.5)
Requirement already satisfied: addict in /home/ci/opt/venv/lib/python3.8/site-packages (from mmcv-full) (2.4.0)
Requirement already satisfied: Pillow in /home/ci/opt/venv/lib/python3.8/site-packages (from mmcv-full) (9.4.0)
Requirement already satisfied: mmdet in /home/ci/opt/venv/lib/python3.8/site-packages (2.28.1)
Requirement already satisfied: six in /home/ci/opt/venv/lib/python3.8/site-packages (from mmdet) (1.16.0)
Requirement already satisfied: scipy in /home/ci/opt/venv/lib/python3.8/site-packages (from mmdet) (1.10.0)
Requirement already satisfied: pycocotools in /home/ci/opt/venv/lib/python3.8/site-packages (from mmdet) (2.0.6)
Requirement already satisfied: terminaltables in /home/ci/opt/venv/lib/python3.8/site-packages (from mmdet) (3.1.10)
Requirement already satisfied: matplotlib in /home/ci/opt/venv/lib/python3.8/site-packages (from mmdet) (3.6.3)
Requirement already satisfied: numpy in /home/ci/opt/venv/lib/python3.8/site-packages (from mmdet) (1.23.5)
Requirement already satisfied: kiwisolver>=1.0.1 in /home/ci/opt/venv/lib/python3.8/site-packages (from matplotlib->mmdet) (1.4.4)
Requirement already satisfied: python-dateutil>=2.7 in /home/ci/opt/venv/lib/python3.8/site-packages (from matplotlib->mmdet) (2.8.2)
Requirement already satisfied: packaging>=20.0 in /home/ci/opt/venv/lib/python3.8/site-packages (from matplotlib->mmdet) (23.0)
Requirement already satisfied: pyparsing>=2.2.1 in /home/ci/opt/venv/lib/python3.8/site-packages (from matplotlib->mmdet) (3.0.9)
Requirement already satisfied: contourpy>=1.0.1 in /home/ci/opt/venv/lib/python3.8/site-packages (from matplotlib->mmdet) (1.0.7)
Requirement already satisfied: pillow>=6.2.0 in /home/ci/opt/venv/lib/python3.8/site-packages (from matplotlib->mmdet) (9.4.0)
Requirement already satisfied: cycler>=0.10 in /home/ci/opt/venv/lib/python3.8/site-packages (from matplotlib->mmdet) (0.11.0)
Requirement already satisfied: fonttools>=4.22.0 in /home/ci/opt/venv/lib/python3.8/site-packages (from matplotlib->mmdet) (4.38.0)
And also import some other packages that will be used in this tutorial:
import os
import time
from autogluon.core.utils.loaders import load_zip
Downloading Data¶
We have the sample dataset ready in the cloud. Let’s download it:
zip_file = "https://automl-mm-bench.s3.amazonaws.com/object_detection_dataset/tiny_motorbike_coco.zip"
download_dir = "./tiny_motorbike_coco"
load_zip.unzip(zip_file, unzip_dir=download_dir)
data_dir = os.path.join(download_dir, "tiny_motorbike")
train_path = os.path.join(data_dir, "Annotations", "trainval_cocoformat.json")
test_path = os.path.join(data_dir, "Annotations", "test_cocoformat.json")
Downloading ./tiny_motorbike_coco/file.zip from https://automl-mm-bench.s3.amazonaws.com/object_detection_dataset/tiny_motorbike_coco.zip...
100%|██████████| 21.8M/21.8M [00:00<00:00, 49.2MiB/s]
While using COCO format dataset, the input is the json annotation file
of the dataset split. In this example, trainval_cocoformat.json is
the annotation file of the train-and-validate split, and
test_cocoformat.json is the annotation file of the test split.
Creating the MultiModalPredictor¶
We select the YOLOv3 with MobileNetV2 as backbone, and input resolution is 320x320, pretrained on COCO dataset. With this setting, it is fast to finetune or inference, and easy to deploy. And we use all the GPUs (if any):
checkpoint_name = "yolov3_mobilenetv2_320_300e_coco"
num_gpus = -1 # use all GPUs
We create the MultiModalPredictor with selected checkpoint name and
number of GPUs. We need to specify the problem_type to
"object_detection", and also provide a sample_data_path for the
predictor to infer the catgories of the dataset. Here we provide the
train_path, and it also works using any other split of this dataset.
And we also provide a path to save the predictor. It will be saved
to a automatically generated directory with timestamp under
AutogluonModels if path is not specified.
# Init predictor
import uuid
model_path = f"./tmp/{uuid.uuid4().hex}-quick_start_tutorial_temp_save"
predictor = MultiModalPredictor(
hyperparameters={
"model.mmdet_image.checkpoint_name": checkpoint_name,
"env.num_gpus": num_gpus,
},
problem_type="object_detection",
sample_data_path=train_path,
path=model_path,
)
processing yolov3_mobilenetv2_320_300e_coco...
Output()
[32mSuccessfully downloaded yolov3_mobilenetv2_320_300e_coco_20210719_215349-d18dff72.pth to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
[32mSuccessfully dumped yolov3_mobilenetv2_320_300e_coco.py to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
processing yolov3_mobilenetv2_320_300e_coco...
[32myolov3_mobilenetv2_320_300e_coco_20210719_215349-d18dff72.pth exists in /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
[32mSuccessfully dumped yolov3_mobilenetv2_320_300e_coco.py to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
load checkpoint from local path: yolov3_mobilenetv2_320_300e_coco_20210719_215349-d18dff72.pth
The model and loaded state dict do not match exactly
size mismatch for bbox_head.convs_pred.0.weight: copying a param with shape torch.Size([255, 96, 1, 1]) from checkpoint, the shape in current model is torch.Size([45, 96, 1, 1]).
size mismatch for bbox_head.convs_pred.0.bias: copying a param with shape torch.Size([255]) from checkpoint, the shape in current model is torch.Size([45]).
size mismatch for bbox_head.convs_pred.1.weight: copying a param with shape torch.Size([255, 96, 1, 1]) from checkpoint, the shape in current model is torch.Size([45, 96, 1, 1]).
size mismatch for bbox_head.convs_pred.1.bias: copying a param with shape torch.Size([255]) from checkpoint, the shape in current model is torch.Size([45]).
size mismatch for bbox_head.convs_pred.2.weight: copying a param with shape torch.Size([255, 96, 1, 1]) from checkpoint, the shape in current model is torch.Size([45, 96, 1, 1]).
size mismatch for bbox_head.convs_pred.2.bias: copying a param with shape torch.Size([255]) from checkpoint, the shape in current model is torch.Size([45]).
Finetuning the Model¶
We set the learning rate to be 2e-4. Note that we use a two-stage
learning rate option during finetuning by default, and the model head
will have 100x learning rate. Using a two-stage learning rate with high
learning rate only on head layers makes the model converge faster during
finetuning. It usually gives better performance as well, especially on
small datasets with hundreds or thousands of images. We also set the
epoch to be 15 and batch_size to be 32. We also compute the time of the
fit process here for better understanding the speed. We run it on a
g4.2xlarge EC2 machine on AWS, and part of the command outputs are shown
below:
start = time.time()
# Fit
predictor.fit(
train_path,
hyperparameters={
"optimization.learning_rate": 2e-4, # we use two stage and detection head has 100x lr
"optimization.max_epochs": 30,
"env.per_gpu_batch_size": 32, # decrease it when model is large
},
)
train_end = time.time()
Using default root folder: ./tiny_motorbike_coco/tiny_motorbike/Annotations/... Specify root=... if you feel it is wrong... Global seed set to 123
loading annotations into memory...
Done (t=0.00s)
creating index...
index created!
AutoMM starts to create your model. ✨
- Model will be saved to "/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save".
- Validation metric is "map".
- To track the learning progress, you can open a terminal and launch Tensorboard:
`shell
# Assume you have installed tensorboard
tensorboard --logdir /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save
`
Enjoy your coffee, and let AutoMM do the job ☕☕☕ Learn more at https://auto.gluon.ai
/home/ci/opt/venv/lib/python3.8/site-packages/pytorch_lightning/trainer/connectors/accelerator_connector.py:577: LightningDeprecationWarning: The Trainer argument auto_select_gpus has been deprecated in v1.9.0 and will be removed in v2.0.0. Please use the function pytorch_lightning.accelerators.find_usable_cuda_devices instead.
rank_zero_deprecation(
GPU available: True (cuda), used: True
TPU available: False, using: 0 TPU cores
IPU available: False, using: 0 IPUs
HPU available: False, using: 0 HPUs
Trainer(val_check_interval=1.0) was configured so validation will run at the end of the training epoch..
LOCAL_RANK: 0 - CUDA_VISIBLE_DEVICES: [0]
| Name | Type | Params
-----------------------------------------------------------------------
0 | model | MMDetAutoModelForObjectDetection | 3.7 M
1 | validation_metric | MeanAveragePrecision | 0
-----------------------------------------------------------------------
3.7 M Trainable params
0 Non-trainable params
3.7 M Total params
14.706 Total estimated model params size (MB)
/home/ci/opt/venv/lib/python3.8/site-packages/pytorch_lightning/trainer/trainer.py:1609: PossibleUserWarning: The number of training batches (5) is smaller than the logging interval Trainer(log_every_n_steps=10). Set a lower value for log_every_n_steps if you want to see logs for the training epoch.
rank_zero_warn(
Epoch 2, global step 6: 'val_map' reached 0.00049 (best 0.00049), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=2-step=6.ckpt' as top 1
Epoch 5, global step 12: 'val_map' reached 0.03356 (best 0.03356), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=5-step=12.ckpt' as top 1
Epoch 8, global step 18: 'val_map' reached 0.03412 (best 0.03412), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=8-step=18.ckpt' as top 1
Epoch 11, global step 24: 'val_map' reached 0.06320 (best 0.06320), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=11-step=24.ckpt' as top 1
Epoch 14, global step 30: 'val_map' reached 0.07698 (best 0.07698), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=14-step=30.ckpt' as top 1
Epoch 17, global step 36: 'val_map' reached 0.08193 (best 0.08193), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=17-step=36.ckpt' as top 1
Epoch 20, global step 42: 'val_map' reached 0.08308 (best 0.08308), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=20-step=42.ckpt' as top 1
Epoch 23, global step 48: 'val_map' reached 0.09008 (best 0.09008), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=23-step=48.ckpt' as top 1
Epoch 26, global step 54: 'val_map' reached 0.10470 (best 0.10470), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=26-step=54.ckpt' as top 1
Epoch 29, global step 60: 'val_map' reached 0.11828 (best 0.11828), saving model to '/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/epoch=29-step=60.ckpt' as top 1
Trainer.fit stopped: max_epochs=30 reached.
AutoMM has created your model 🎉🎉🎉
- To load the model, use the code below:
`python
from autogluon.multimodal import MultiModalPredictor
predictor = MultiModalPredictor.load("/home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save")
`
- You can open a terminal and launch Tensorboard to visualize the training log:
`shell
# Assume you have installed tensorboard
tensorboard --logdir /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save
`
- If you are not satisfied with the model, try to increase the training time,
adjust the hyperparameters (https://auto.gluon.ai/stable/tutorials/multimodal/advanced_topics/customization.html),
or post issues on GitHub: https://github.com/autogluon/autogluon
Notice that at the end of each progress bar, if the checkpoint at
current stage is saved, it prints the model’s save path. In this
example, it’s ./quick_start_tutorial_temp_save.
Print out the time and we can see that it’s fast!
print("This finetuning takes %.2f seconds." % (train_end - start))
This finetuning takes 79.47 seconds.
Evaluation¶
To evaluate the model we just trained, run following code.
And the evaluation results are shown in command line output. The first line is mAP in COCO standard, and the second line is mAP in VOC standard (or mAP50). For more details about these metrics, see COCO’s evaluation guideline. Note that for presenting a fast finetuning we use 15 epochs, you could get better result on this dataset by simply increasing the epochs.
predictor.evaluate(test_path)
eval_end = time.time()
Using default root folder: ./tiny_motorbike_coco/tiny_motorbike/Annotations/... Specify root=... if you feel it is wrong...
loading annotations into memory...
Done (t=0.00s)
creating index...
index created!
/home/ci/opt/venv/lib/python3.8/site-packages/pytorch_lightning/trainer/connectors/accelerator_connector.py:577: LightningDeprecationWarning: The Trainer argument auto_select_gpus has been deprecated in v1.9.0 and will be removed in v2.0.0. Please use the function pytorch_lightning.accelerators.find_usable_cuda_devices instead. rank_zero_deprecation( A new predictor save path is created.This is to prevent you to overwrite previous predictor saved here.You could check current save path at predictor._save_path.If you still want to use this path, set resume=True No path specified. Models will be saved in: "AutogluonModels/ag-20230214_020501/"
saving file at /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/AutogluonModels/ag-20230214_020501/object_detection_result_cache.json loading annotations into memory... Done (t=0.00s) creating index... index created! Loading and preparing results... DONE (t=0.01s) creating index... index created! Running per image evaluation... Evaluate annotation type bbox DONE (t=0.13s). Accumulating evaluation results... DONE (t=0.05s). Average Precision (AP) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.139 Average Precision (AP) @[ IoU=0.50 | area= all | maxDets=100 ] = 0.367 Average Precision (AP) @[ IoU=0.75 | area= all | maxDets=100 ] = 0.065 Average Precision (AP) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.016 Average Precision (AP) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.121 Average Precision (AP) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.355 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 1 ] = 0.115 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 10 ] = 0.192 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.212 Average Recall (AR) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.104 Average Recall (AR) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.222 Average Recall (AR) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.450
Print out the evaluation time:
print("The evaluation takes %.2f seconds." % (eval_end - train_end))
The evaluation takes 0.89 seconds.
We can load a new predictor with previous save_path, and we can also reset the number of GPUs to use if not all the devices are available:
# Load and reset num_gpus
new_predictor = MultiModalPredictor.load(model_path)
new_predictor.set_num_gpus(1)
processing yolov3_mobilenetv2_320_300e_coco...
[32myolov3_mobilenetv2_320_300e_coco_20210719_215349-d18dff72.pth exists in /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
[32mSuccessfully dumped yolov3_mobilenetv2_320_300e_coco.py to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
processing yolov3_mobilenetv2_320_300e_coco...
[32myolov3_mobilenetv2_320_300e_coco_20210719_215349-d18dff72.pth exists in /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
[32mSuccessfully dumped yolov3_mobilenetv2_320_300e_coco.py to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
Load pretrained checkpoint: /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/tmp/bfc39b047ec4495d96d5d1e12cef44b0-quick_start_tutorial_temp_save/model.ckpt
Evaluating the new predictor gives us exactly the same result:
# Evaluate new predictor
new_predictor.evaluate(test_path)
Using default root folder: ./tiny_motorbike_coco/tiny_motorbike/Annotations/... Specify root=... if you feel it is wrong...
loading annotations into memory...
Done (t=0.00s)
creating index...
index created!
/home/ci/opt/venv/lib/python3.8/site-packages/pytorch_lightning/trainer/connectors/accelerator_connector.py:577: LightningDeprecationWarning: The Trainer argument auto_select_gpus has been deprecated in v1.9.0 and will be removed in v2.0.0. Please use the function pytorch_lightning.accelerators.find_usable_cuda_devices instead. rank_zero_deprecation( A new predictor save path is created.This is to prevent you to overwrite previous predictor saved here.You could check current save path at predictor._save_path.If you still want to use this path, set resume=True No path specified. Models will be saved in: "AutogluonModels/ag-20230214_020507/"
saving file at /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/AutogluonModels/ag-20230214_020507/object_detection_result_cache.json loading annotations into memory... Done (t=0.00s) creating index... index created! Loading and preparing results... DONE (t=0.01s) creating index... index created! Running per image evaluation... Evaluate annotation type bbox DONE (t=0.36s). Accumulating evaluation results... DONE (t=0.05s). Average Precision (AP) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.139 Average Precision (AP) @[ IoU=0.50 | area= all | maxDets=100 ] = 0.367 Average Precision (AP) @[ IoU=0.75 | area= all | maxDets=100 ] = 0.065 Average Precision (AP) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.016 Average Precision (AP) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.121 Average Precision (AP) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.355 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 1 ] = 0.115 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 10 ] = 0.192 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.212 Average Recall (AR) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.104 Average Recall (AR) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.222 Average Recall (AR) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.450
{'map': 0.13892283785508422,
'mean_average_precision': 0.13892283785508422,
'map_50': 0.366640961042269,
'map_75': 0.0653530019465449,
'map_small': 0.015565106581493938,
'map_medium': 0.12067809623097113,
'map_large': 0.3551383940451113,
'mar_1': 0.11457693211181581,
'mar_10': 0.19172421893352126,
'mar_100': 0.2123260512097721,
'mar_small': 0.10375000000000001,
'mar_medium': 0.2222222222222222,
'mar_large': 0.4496626180836707}
If we set validation metric to "map" (Mean Average Precision), and
max epochs to 50, the predictor will have better performance with
the same pretrained model (YOLOv3). We trained it offline and uploaded
to S3. To load and check the result:
# Load Trained Predictor from S3
zip_file = "https://automl-mm-bench.s3.amazonaws.com/object_detection/quick_start/AP50_433.zip"
download_dir = "./AP50_433"
load_zip.unzip(zip_file, unzip_dir=download_dir)
better_predictor = MultiModalPredictor.load("./AP50_433/quick_start_tutorial_temp_save")
better_predictor.set_num_gpus(1)
# Evaluate new predictor
better_predictor.evaluate(test_path)
Downloading ./AP50_433/file.zip from https://automl-mm-bench.s3.amazonaws.com/object_detection/quick_start/AP50_433.zip...
100%|██████████| 27.8M/27.8M [00:00<00:00, 59.1MiB/s]
Unzipping ./AP50_433/file.zip to ./AP50_433
Start to upgrade the previous configuration trained by AutoMM version=0.5.3b20221111.
Loading a model that has been trained via AutoGluon Multimodal<=0.6.2. Try to update the timm image size.
/home/ci/opt/venv/lib/python3.8/site-packages/sklearn/base.py:329: UserWarning: Trying to unpickle estimator LabelEncoder from version 1.0.2 when using version 1.1.1. This might lead to breaking code or invalid results. Use at your own risk. For more info please refer to:
https://scikit-learn.org/stable/model_persistence.html#security-maintainability-limitations
warnings.warn(
/home/ci/opt/venv/lib/python3.8/site-packages/sklearn/base.py:329: UserWarning: Trying to unpickle estimator StandardScaler from version 1.0.2 when using version 1.1.1. This might lead to breaking code or invalid results. Use at your own risk. For more info please refer to:
https://scikit-learn.org/stable/model_persistence.html#security-maintainability-limitations
warnings.warn(
processing yolov3_mobilenetv2_320_300e_coco...
[32myolov3_mobilenetv2_320_300e_coco_20210719_215349-d18dff72.pth exists in /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
[32mSuccessfully dumped yolov3_mobilenetv2_320_300e_coco.py to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
processing yolov3_mobilenetv2_320_300e_coco...
[32myolov3_mobilenetv2_320_300e_coco_20210719_215349-d18dff72.pth exists in /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
[32mSuccessfully dumped yolov3_mobilenetv2_320_300e_coco.py to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start[0m
Load pretrained checkpoint: /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/AP50_433/quick_start_tutorial_temp_save/model.ckpt Using default root folder: ./tiny_motorbike_coco/tiny_motorbike/Annotations/... Specify root=... if you feel it is wrong...
loading annotations into memory...
Done (t=0.00s)
creating index...
index created!
/home/ci/opt/venv/lib/python3.8/site-packages/pytorch_lightning/trainer/connectors/accelerator_connector.py:577: LightningDeprecationWarning: The Trainer argument auto_select_gpus has been deprecated in v1.9.0 and will be removed in v2.0.0. Please use the function pytorch_lightning.accelerators.find_usable_cuda_devices instead. rank_zero_deprecation( A new predictor save path is created.This is to prevent you to overwrite previous predictor saved here.You could check current save path at predictor._save_path.If you still want to use this path, set resume=True No path specified. Models will be saved in: "AutogluonModels/ag-20230214_020514/"
saving file at /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/AutogluonModels/ag-20230214_020514/object_detection_result_cache.json loading annotations into memory... Done (t=0.00s) creating index... index created! Loading and preparing results... DONE (t=0.01s) creating index... index created! Running per image evaluation... Evaluate annotation type bbox DONE (t=0.13s). Accumulating evaluation results... DONE (t=0.05s). Average Precision (AP) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.195 Average Precision (AP) @[ IoU=0.50 | area= all | maxDets=100 ] = 0.433 Average Precision (AP) @[ IoU=0.75 | area= all | maxDets=100 ] = 0.135 Average Precision (AP) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.036 Average Precision (AP) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.206 Average Precision (AP) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.450 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 1 ] = 0.158 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets= 10 ] = 0.231 Average Recall (AR) @[ IoU=0.50:0.95 | area= all | maxDets=100 ] = 0.244 Average Recall (AR) @[ IoU=0.50:0.95 | area= small | maxDets=100 ] = 0.138 Average Recall (AR) @[ IoU=0.50:0.95 | area=medium | maxDets=100 ] = 0.295 Average Recall (AR) @[ IoU=0.50:0.95 | area= large | maxDets=100 ] = 0.508
{'map': 0.19495386487978572,
'mean_average_precision': 0.19495386487978572,
'map_50': 0.4332857299534383,
'map_75': 0.13537716307477576,
'map_small': 0.03559795706853831,
'map_medium': 0.20600519224203545,
'map_large': 0.4499958167494408,
'mar_1': 0.15790885600187926,
'mar_10': 0.23102513507164674,
'mar_100': 0.24378999295278367,
'mar_small': 0.13833333333333334,
'mar_medium': 0.2949206349206349,
'mar_large': 0.5080251911830859}
For how to set those hyperparameters and finetune the model with higher performance, see AutoMM Detection - High Performance Finetune on COCO Format Dataset.
Inference¶
Now that we have gone through the model setup, finetuning, and evaluation, this section details the inference. Specifically, we layout the steps for using the model to make predictions and visualize the results.
To run inference on the entire test set, perform:
pred = predictor.predict(test_path)
print(pred)
Using default root folder: ./tiny_motorbike_coco/tiny_motorbike/Annotations/... Specify root=... if you feel it is wrong...
loading annotations into memory...
Done (t=0.00s)
creating index...
index created!
/home/ci/opt/venv/lib/python3.8/site-packages/pytorch_lightning/trainer/connectors/accelerator_connector.py:577: LightningDeprecationWarning: The Trainer argument auto_select_gpus has been deprecated in v1.9.0 and will be removed in v2.0.0. Please use the function pytorch_lightning.accelerators.find_usable_cuda_devices instead. rank_zero_deprecation(
image 0 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
1 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
2 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
3 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
4 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
5 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
6 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
7 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
8 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
9 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
10 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
11 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
12 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
13 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
14 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
15 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
16 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
17 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
18 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
19 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
20 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
21 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
22 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
23 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
24 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
25 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
26 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
27 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
28 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
29 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
30 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
31 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
32 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
33 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
34 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
35 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
36 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
37 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
38 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
39 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
40 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
41 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
42 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
43 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
44 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
45 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
46 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
47 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
48 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
49 ./tiny_motorbike_coco/tiny_motorbike/Annotatio...
bboxes
0 [{'class': 'bicycle', 'bbox': [173.50233, 179....
1 [{'class': 'bicycle', 'bbox': [375.84824, 268....
2 [{'class': 'bicycle', 'bbox': [447.19183, 99.1...
3 [{'class': 'bicycle', 'bbox': [50.952763, 44.3...
4 [{'class': 'bicycle', 'bbox': [135.4371, 186.3...
5 [{'class': 'car', 'bbox': [23.612324, 36.72851...
6 [{'class': 'motorbike', 'bbox': [25.189875, 11...
7 [{'class': 'motorbike', 'bbox': [126.620674, 1...
8 [{'class': 'bicycle', 'bbox': [124.255196, 51....
9 [{'class': 'bicycle', 'bbox': [145.57304, -5.6...
10 [{'class': 'bicycle', 'bbox': [380.30948, 107....
11 [{'class': 'bicycle', 'bbox': [362.25558, 240....
12 [{'class': 'car', 'bbox': [456.4675, 17.214827...
13 [{'class': 'motorbike', 'bbox': [-13.019776, 4...
14 [{'class': 'car', 'bbox': [227.31514, 4.658209...
15 [{'class': 'motorbike', 'bbox': [212.12163, 18...
16 [{'class': 'bicycle', 'bbox': [442.01242, 71.1...
17 [{'class': 'bicycle', 'bbox': [30.3753, 238.42...
18 [{'class': 'car', 'bbox': [103.0758, -115.6833...
19 [{'class': 'bicycle', 'bbox': [145.97913, 85.6...
20 [{'class': 'bicycle', 'bbox': [-5.2200108, 204...
21 [{'class': 'motorbike', 'bbox': [107.0592, 202...
22 [{'class': 'bicycle', 'bbox': [303.01477, 213....
23 [{'class': 'bicycle', 'bbox': [349.40033, 0.05...
24 [{'class': 'bicycle', 'bbox': [1.1138946, -14....
25 [{'class': 'bicycle', 'bbox': [408.08844, 160....
26 [{'class': 'bicycle', 'bbox': [448.6404, -0.65...
27 [{'class': 'car', 'bbox': [-9.632367, 8.105296...
28 [{'class': 'motorbike', 'bbox': [4.1989803, 12...
29 [{'class': 'bicycle', 'bbox': [212.08734, 139....
30 [{'class': 'car', 'bbox': [34.584164, 39.71519...
31 [{'class': 'bicycle', 'bbox': [0.49745142, 95....
32 [{'class': 'motorbike', 'bbox': [119.40121, 18...
33 [{'class': 'bicycle', 'bbox': [350.8685, 36.85...
34 [{'class': 'bus', 'bbox': [404.8365, -3.599782...
35 [{'class': 'bicycle', 'bbox': [304.89337, 41.7...
36 [{'class': 'car', 'bbox': [-58.4035, 62.54875,...
37 [{'class': 'motorbike', 'bbox': [-9.7497225, 5...
38 [{'class': 'motorbike', 'bbox': [-41.79077, 25...
39 [{'class': 'motorbike', 'bbox': [170.32996, 27...
40 [{'class': 'bicycle', 'bbox': [34.81211, 192.8...
41 [{'class': 'bicycle', 'bbox': [3.5297365, 66.1...
42 [{'class': 'bicycle', 'bbox': [386.77277, 148....
43 [{'class': 'bus', 'bbox': [90.56901, 4.2331314...
44 [{'class': 'motorbike', 'bbox': [87.13502, 137...
45 [{'class': 'motorbike', 'bbox': [200.50403, 11...
46 [{'class': 'bicycle', 'bbox': [352.23834, 86.4...
47 [{'class': 'car', 'bbox': [72.093124, 40.08678...
48 [{'class': 'bicycle', 'bbox': [221.85867, 16.8...
49 [{'class': 'car', 'bbox': [54.908, 122.310745,...
The output pred is a pandas DataFrame that has two columns,
image and bboxes.
In image, each row contains the image path
In bboxes, each row is a list of dictionaries, each one representing
a bounding box:
{"class": <predicted_class_name>, "bbox": [x1, y1, x2, y2], "score": <confidence_score>}
Note that, by default, the predictor.predict does not save the
detection results into a file.
To run inference and save results, run the following:
pred = better_predictor.predict(test_path, save_results=True)
Using default root folder: ./tiny_motorbike_coco/tiny_motorbike/Annotations/... Specify root=... if you feel it is wrong...
loading annotations into memory...
Done (t=0.00s)
creating index...
index created!
/home/ci/opt/venv/lib/python3.8/site-packages/pytorch_lightning/trainer/connectors/accelerator_connector.py:577: LightningDeprecationWarning: The Trainer argument auto_select_gpus has been deprecated in v1.9.0 and will be removed in v2.0.0. Please use the function pytorch_lightning.accelerators.find_usable_cuda_devices instead. rank_zero_deprecation( A new predictor save path is created.This is to prevent you to overwrite previous predictor saved here.You could check current save path at predictor._save_path.If you still want to use this path, set resume=True No path specified. Models will be saved in: "AutogluonModels/ag-20230214_020516/" Saved detection results to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/AutogluonModels/ag-20230214_020516/result.txt
Saved detection results to /home/ci/autogluon/docs/_build/eval/tutorials/multimodal/object_detection/quick_start/AutogluonModels/ag-20230214_020516/result.txt
Here, we save pred into a .txt file, which exactly follows the
same layout as in pred. You can use a predictor initialzed in anyway
(i.e. finetuned predictor, predictor with pretrained model, etc.). Here,
we demonstrate using the better_predictor loaded previously.
Visualizing Results¶
To run visualizations, ensure that you have opencv installed. If you
haven’t already, install opencv by running
!pip install opencv-python
Requirement already satisfied: opencv-python in /home/ci/opt/venv/lib/python3.8/site-packages (4.7.0.68)
Requirement already satisfied: numpy>=1.17.0 in /home/ci/opt/venv/lib/python3.8/site-packages (from opencv-python) (1.23.5)

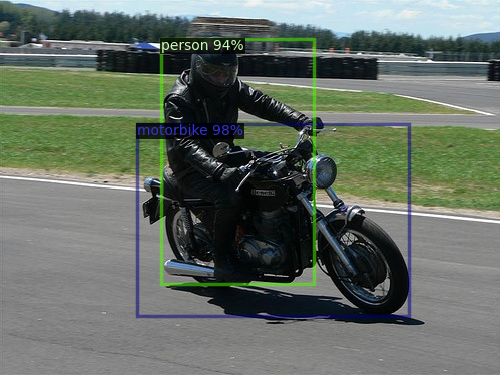

To visualize the detection bounding boxes, run the following:
from autogluon.multimodal.utils import Visualizer
conf_threshold = 0.4 # Specify a confidence threshold to filter out unwanted boxes
image_result = pred.iloc[30]
img_path = image_result.image # Select an image to visualize
visualizer = Visualizer(img_path) # Initialize the Visualizer
out = visualizer.draw_instance_predictions(image_result, conf_threshold=conf_threshold) # Draw detections
visualized = out.get_image() # Get the visualized image
from PIL import Image
from IPython.display import display
img = Image.fromarray(visualized, 'RGB')
display(img)
Testing on Your Own Image¶
You can also download an image and run inference on that single image. The follow is an example:
Download the example image:
from autogluon.multimodal import download
image_url = "https://raw.githubusercontent.com/dmlc/web-data/master/gluoncv/detection/street_small.jpg"
test_image = download(image_url)
Downloading street_small.jpg from https://raw.githubusercontent.com/dmlc/web-data/master/gluoncv/detection/street_small.jpg...
Run inference:
pred_test_image = better_predictor.predict({"image": [test_image]})
print(pred_test_image)
/home/ci/opt/venv/lib/python3.8/site-packages/pytorch_lightning/trainer/connectors/accelerator_connector.py:577: LightningDeprecationWarning: The Trainer argument auto_select_gpus has been deprecated in v1.9.0 and will be removed in v2.0.0. Please use the function pytorch_lightning.accelerators.find_usable_cuda_devices instead. rank_zero_deprecation(
image bboxes
0 street_small.jpg [{'class': 'bicycle', 'bbox': [235.36739, 216....
Other Examples¶
You may go to AutoMM Examples to explore other examples about AutoMM.
Customization¶
To learn how to customize AutoMM, please refer to Customize AutoMM.
Citation¶
@misc{redmon2018yolov3,
title={YOLOv3: An Incremental Improvement},
author={Joseph Redmon and Ali Farhadi},
year={2018},
eprint={1804.02767},
archivePrefix={arXiv},
primaryClass={cs.CV}
}
